Feature:

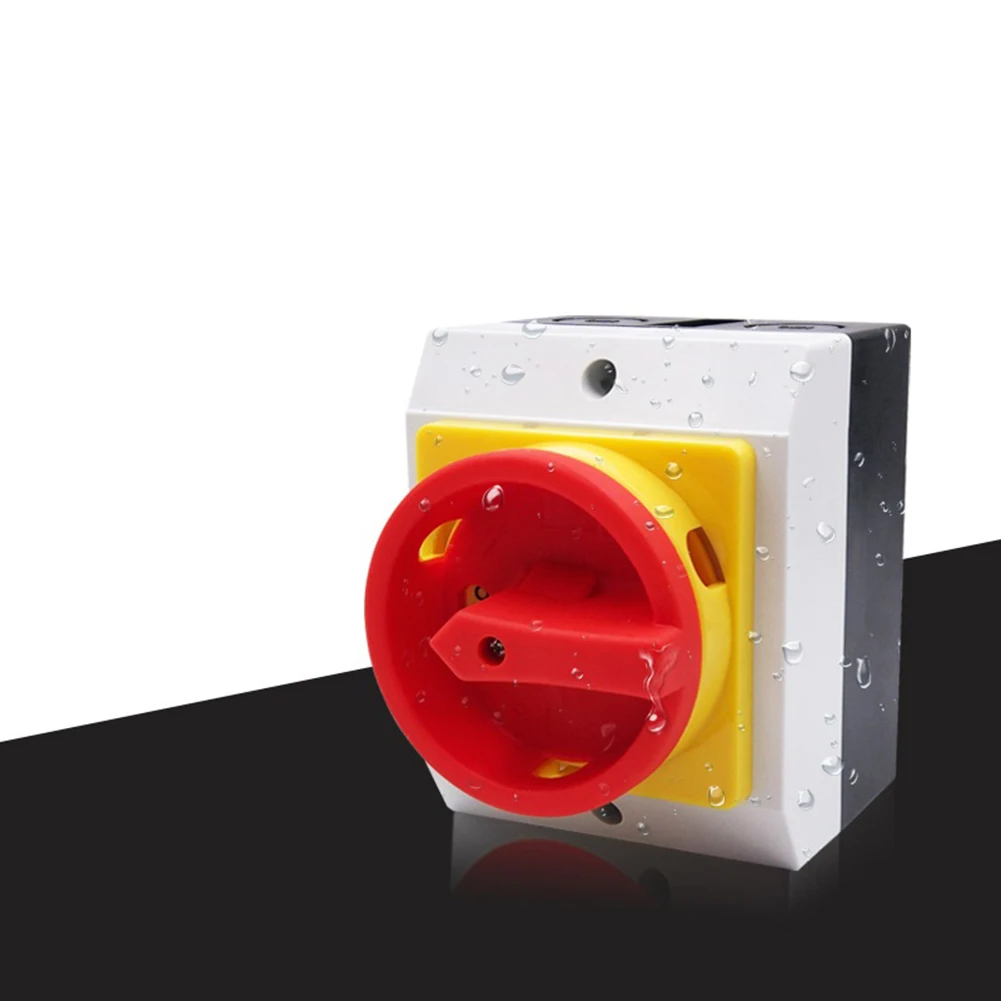

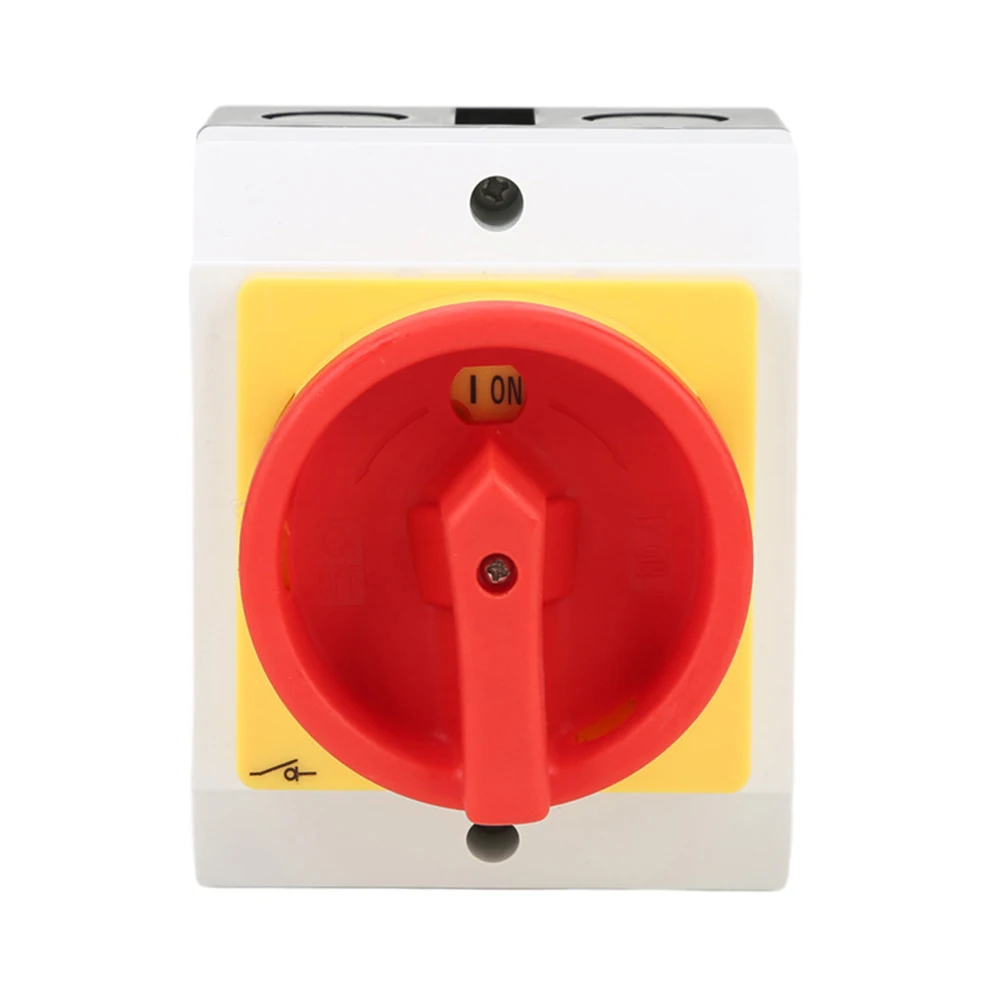

*The universal main power switch is mainly used in circuits with 50 Hz AC, a rated operating voltage of up to 440 V and a rated current of up to 20 A. Connection: 4-pin.Sterling Silver Contacts

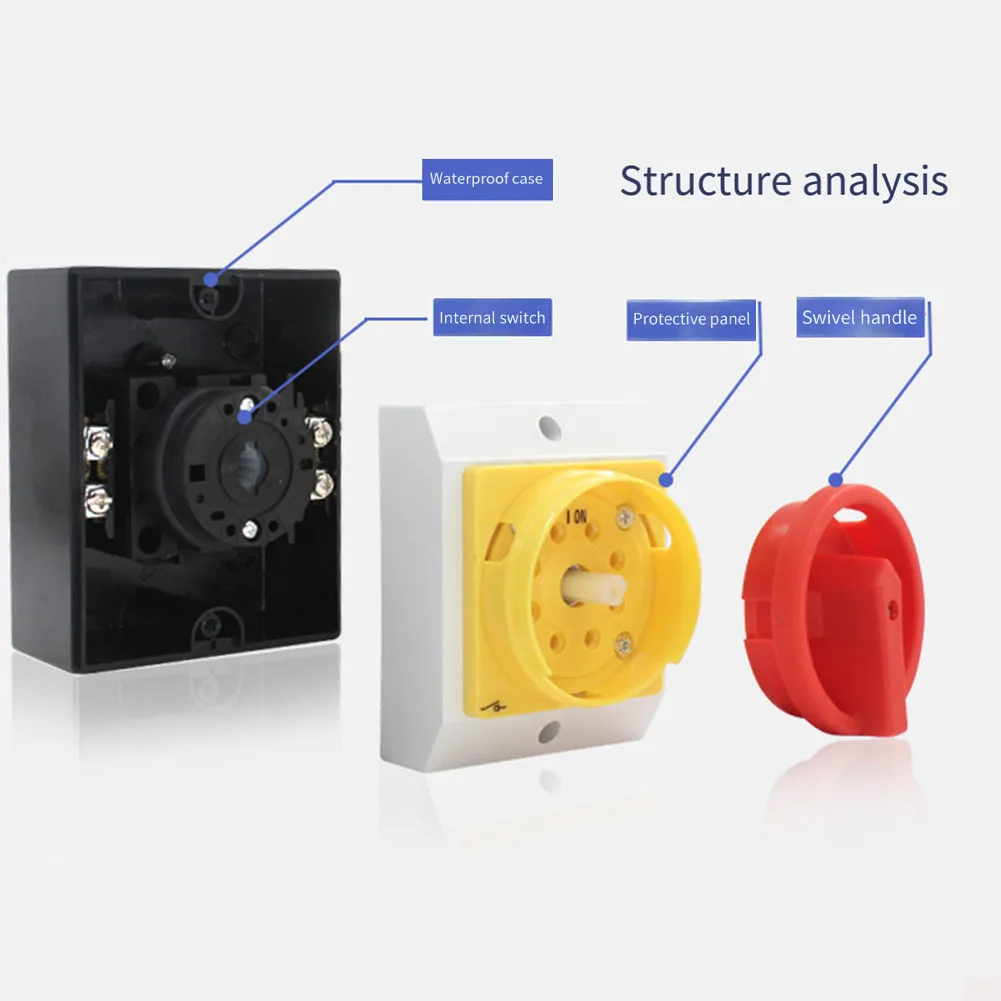

*Main power switch with housing: The housing of the main power switch is made of robust polycarbonate. Suitable for harsh environments, water and dust protection, ideal for indoor and outdoor use.

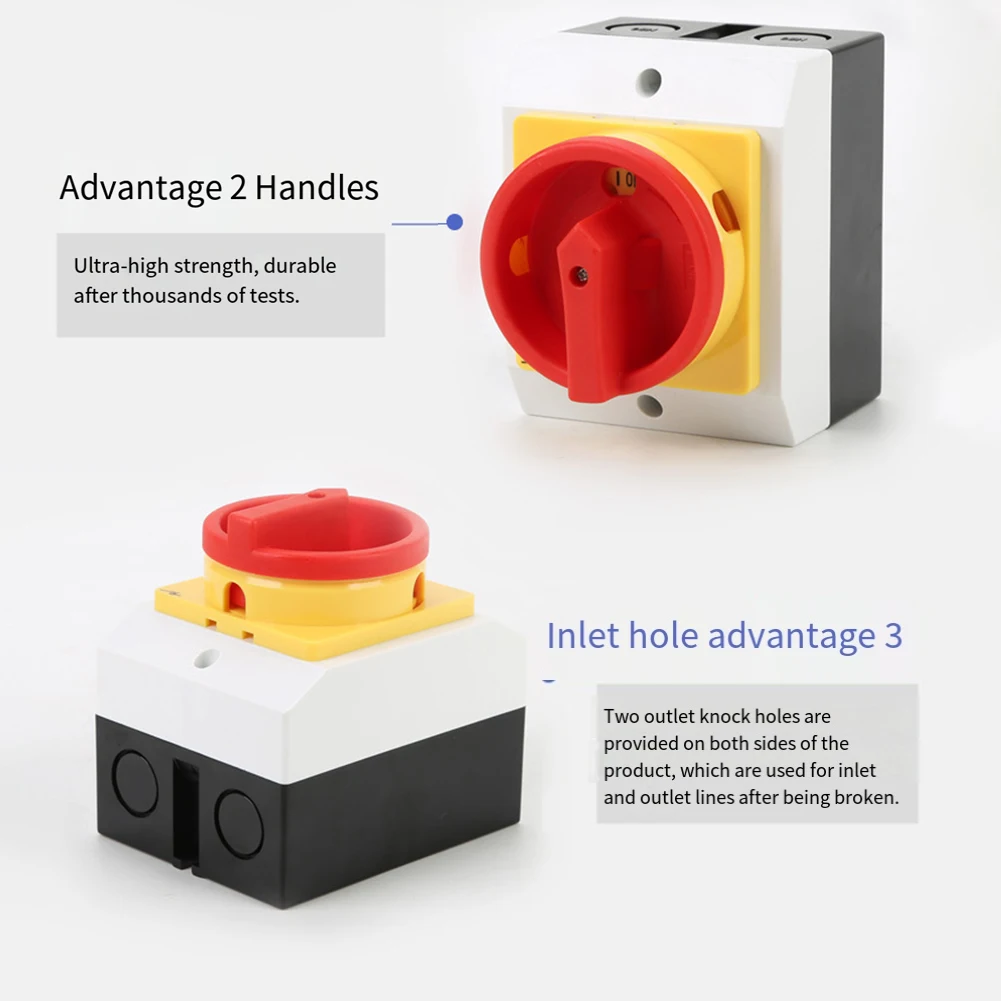

*Excellent design: The switch features small size, compact design, excellent material selection, good insulation, finger protection function, safety and reliability. The pre-embossed structure on the housing allows for flexible cable routing.

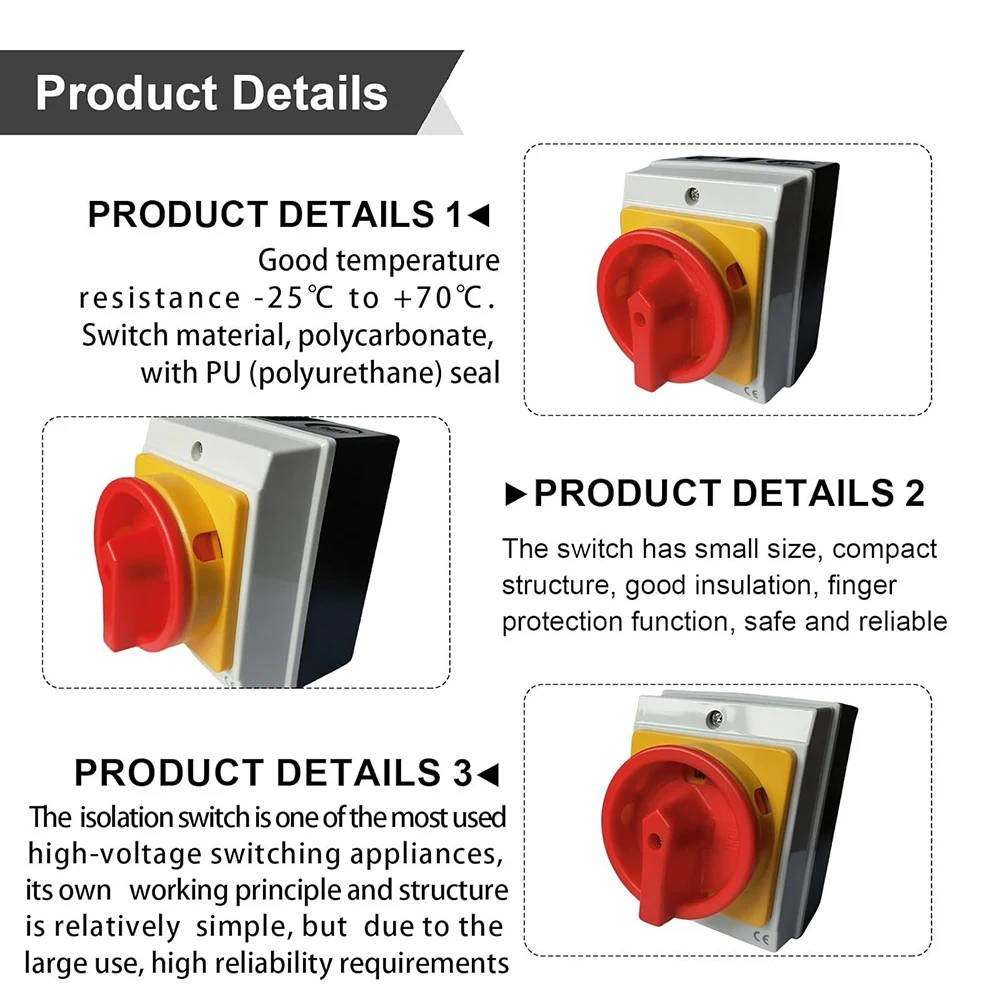

*Temperature resistance and safety: The main power switch has a temperature resistance of -25℃ to +80℃. The switching material is made of polycarbonate and offers stable protection. IP65 protection level, rainproof and dustproof, isolated from liquid dust
*Versatile use: The main power switch is used as a main switch for ventilation equipment, air conditioning, water pumps and solar systems. It can also directly control small AC motors. It is used for “isolating power supply, switching operation, connecting and disconnecting small circuits”, without arc extinguishing function.

Specification:
Product name: UKP waterproof isolating switch

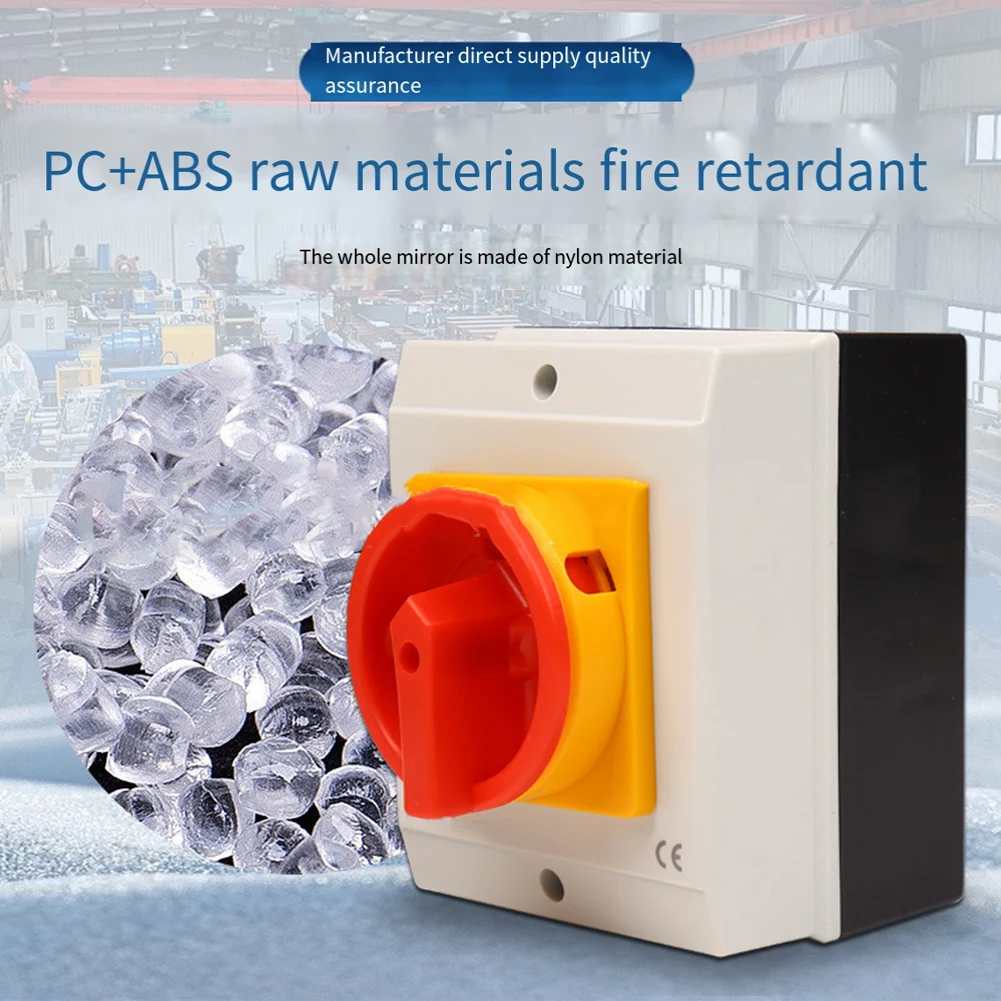

Shell material: PC+ABS flame retardant material
Base Contacts: Sterling Silver Contacts
Installation method: screw to wall
Wiring method: 4-pin, plug-in type
Product certification: ce
Rated voltage: 440V
Rated current: 20A
Applicable scenarios: Can be used indoors and outdoors
Protection level: IP65
Working temperature: -25～80℃
Electrical life: 10,000 times
Mechanical life: 20,000 times

Packing list:
1*UKP waterproof isolating switch

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
